Product Summary

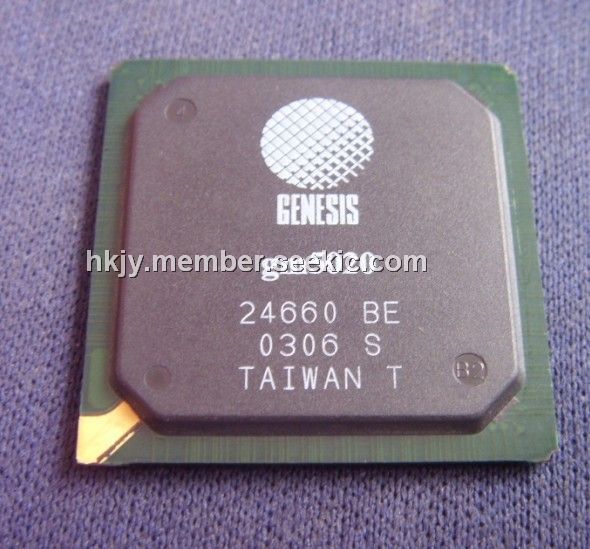

The GM5020 is a graphics processing IC providing high-quality images for LCD monitors and other pixelated displays. It combines a triple ADC, the Genesis Ultra-Reliable DVI receiver, a high quality zoom and shrink scaling engine, frame rate conversion, an on-screen display (OSD) controller, a microprocessor and many other functions in a single device.
Parametrics
Absolute maximum ratings: (1)Supply Voltage AVDD_3.3 & DVDD_3.3 & PLLVDD_3.3: -0.3 to 3.6 V; (2)Supply Voltage AVDD_2.5 & DVDD_2.5: -0.3 to 2.75 V; (3)Input Voltage (5V tolerant inputs): -0.3 to 5.5 V; (4)Input Voltage (non 5V tolerant inputs): -0.3 to 3.6 V; (5)Electrostatic Discharge: ±2.0 kV; (6)Latchup: ±100 mA; (7)Ambient Operating Temperature: 0 to 70 °C; (8)Storage Temperature: -40 to 125 °C.
Features
Features: (1)Integrated High-bandwidth Digital Content Protection (HDCP); (2)Embedded microcontroller simplifies OSD creation; (3)On-chip versatile OSD engine; (4)All system clocks synthesized from a single external crystal; (5)Programmable gamma correction (CLUT); (6)Hue, Saturation, Brightness, Contrast and Gamma controls for RGB and YUV signals.

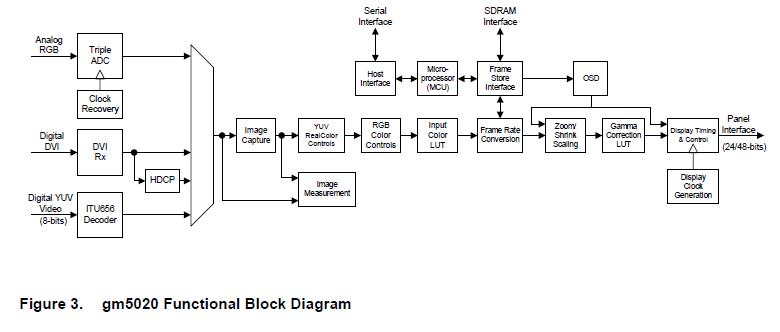

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 gm5020 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
gm5020 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
gm5060 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
gm5060-H |
Other |
|
Data Sheet |
Negotiable |
|
||||
