Product Summary

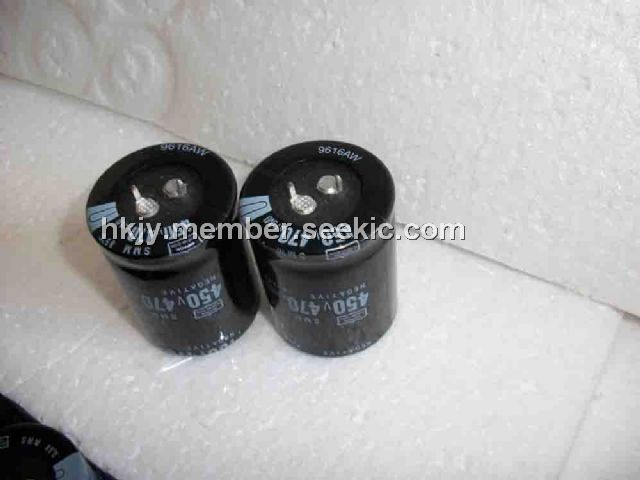

The ESMM451VSN471MA45S is large capacitance aluminum electrolytic capacitors. The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5C rise. When long life performance is required in actual use, the rms ripple current has to be reduced.
Parametrics
Absolute maximum ratings:(1)Temperature Range: -25 to +85℃; (2)Rated Voltage Range: 160 to 450Vdc; (3)Capacitance Tolerance: ±20% (M); (4)Leakage Current: I≦3√￣ CV; (5)Dissipation Factor (tanδ) of Rated voltage (Vdc):160 to 400V; (6)Dissipation Factor (tanδ) of tanδ (Max.): 0.15; (7)Low Temperature Characteristics (Max. Impedance Ratio):160 to 400V.
Features
Features:(1)CAT. No. E1001J; (2)Downsize, longer life, and high ripple version of SMH series; (3)Endurance with ripple current : 3,000 hours at 85C; (4)Non solvent resistant type; (5)RoHS Compliant.
Diagrams
 |
