Product Summary

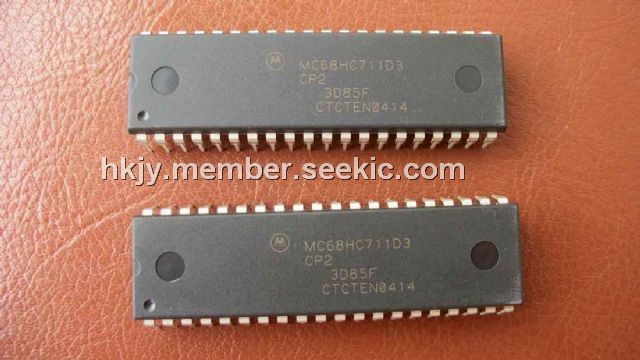

The MC68HC711D3CP2 contains highly sophisticated on-chip peripheral functions. This high-speed, low-power programmable read-only memory (PROM) MCU has a nominal bus speed of 3 MHz. The fully static design allows operations at frequencies down to dc. The MC68HC711D3CP2 is read-only memory (ROM) based high-performance microcontrollers (MCU) based on the MC68HC11E9 design.
Parametrics
Absolute maximum ratings:(1)Supply voltage, VDD: –0.3 to +6.0V ; (2)Input voltage, VIN: VSS–0.3 to VDD +0.3V; (3)Current drain per pin(1) Excluding VDD, VSS, VRH, and VRL, ID: 25mA ; (4)Storage temperature, TSTG: –55 to +150°C.
Features
Features: (1)Expanded 16-bit timer system with four-stage programmable prescaler; (2)Non-return-to-zero (NRZ) serial communications interface (SCI); (3)Power-saving stop and wait modes; (4)64 Kbytes memory addressability; (5)Multiplexed address/data bus; (6)Serial peripheral interface (SPI); (7)4 Kbytes of one-time programmable read-only memory (OTPROM); (8)8-bit pulse accumulator circuit; (9)192 bytes of static random-access memory (RAM) (all saved during standby); (10)Real-time interrupt (RTI) circuit; (11)Computer operating properly (COP) watchdog system; (12)Available in these packages:40-pin plastic dual in-line package (DIP), 44-pin plastic leaded chip carrier (PLCC), 44-pin plastic quad flat pack (QFP).

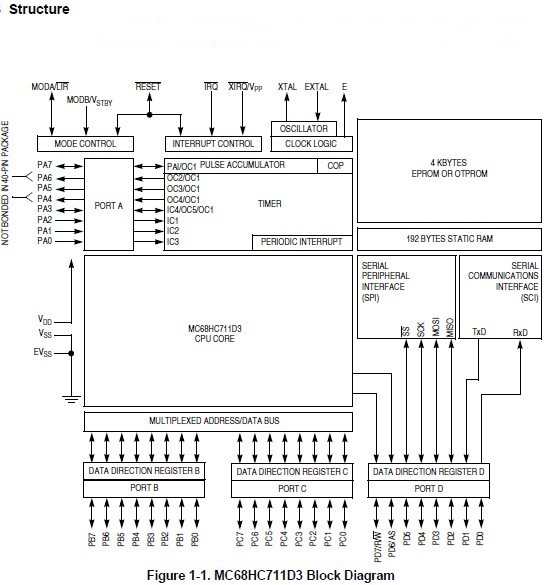

Diagrams
 |
