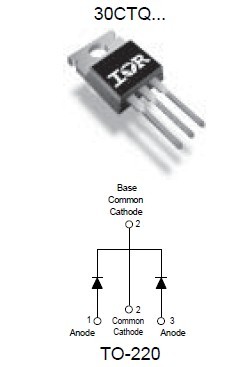

30CTQ060PBF

center tap Schottky rectifier, low forward voltage drop, moderate leakage

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: 30CTQ060PBF

Brand:: International Rectifier - IR | Pack: TO | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Claire Huang's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-01

From Other Seller

Part Number:30CTQ060PBF
US $0.10 - 1.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 30CTQ060PBF is a kind of center tap Schottky rectifier. It is designed for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150℃ junction temperature. Typical applications include switching power supplies, converters, free-wheeling diodes, and reverse battery protection.

Parametrics

Absolute maximum ratings: (1)VR, Max. DC Reverse Voltage (V): 60 V; (2)VRWM, Max. Working Peak Reverse Voltage (V): 60 V; (3)IF(AV), Max. Average Forward Current when 50% duty cycle @ TC = 105°C, rectangular wave form: (Per Leg): 15 A; (Per Device): 30 A; (4)IFSM, Max. Peak One Cycle Non-Repetitive Surge Current (Per Leg): 1000 A when 5μs Sine or 3μs Rect. pulse and 260 A when 10ms Sine or 6ms Rect. pulse; (5)EAS, Non-Repetitive Avalanche Energy (Per Leg): 13 mJ when TJ = 25℃, IAS = 1.50 Amps, L = 11.5 mH; (6)IAR, Repetitive Avalanche Current (Per Leg): 1.50 A when Current decaying linearly to zero in 1 μsec and Frequency limited by TJ max. VA = 1.5 x VR typical.

Features

Features: (1)150℃ TJ operation; (2)Center tap configuration; (3)Very low forward voltage drop; (4)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance; (5)High frequency operation; (6)Guard ring for enhanced ruggedness and long term reliability.
