Product Summary

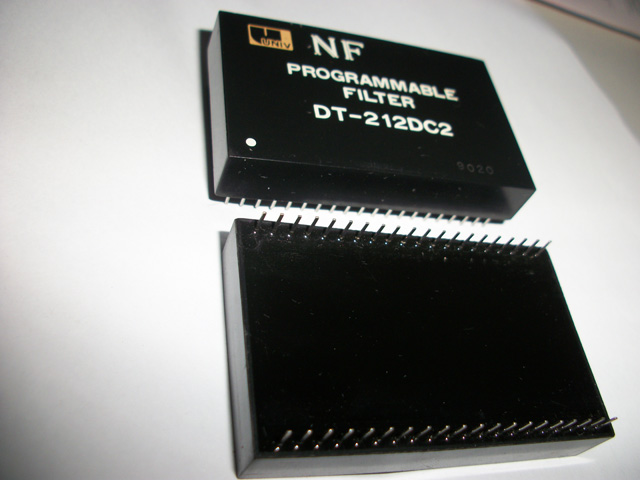

The DT-212DC2 is CR Active Filter as well as programmable filter. It is featured with low pass, high pass, band pass. The cutoff (center) frequency is controlled by external BCD setting. The gain and Q can be set by external resistor 40-pin DIP package, 54.4 x 33.7 mm.

Parametrics

Absolute maximum ratings: (1)Frequency setting method BCD 3 digits or 2 digits; (2)Attenuation 12dB/oct (LPF, HPF), 6dB/oct (BPF); (3)Maximum input voltage ±10V/gain; (4)Output impedance Below 5Ω; (5)Maximum output voltage ±10V (<100kHz); for DT-208 ±10V (<1MHz); (6)Temperature humidity range Operation: -20 to +70°C, 10 to 95% RH; (7)Storage: -30° to +80°C, 10 to 80% RH; (8)Supply Volyage ±15V ±10% (DT-212DC1 & DT-212DC2 also require ±5V ±10%).

Features

Features: :(1)Manu. Part No.: DT-212DC2; (2)Frequency setting range: 100Hz to 159.9kHz; (3)Capacitor: Built-in; (4)External: HA type.
