SAB-C167CR-LM

Product Summary

The SAB-C167CR-LM is a new derivative of the Siemens C16x Family of full featured single-chip CMOS microcontrollers. It combines high CPU performance (up to 10 million instructions per second) with high peripheral functionality and enhanced IO-capabilities. It also provides on-chip high-speed RAM and clock generation via PLL.

Parametrics

Absolute maximum ratings:(1)Ambient temperature under bias (TA) of SAB-C167CR-LM: 0 to + 70 °C; (2)Storage temperature (TST): – 65 to + 150 °C; (3)Voltage on VCC pins with respect to ground (VSS): - 0.5 to + 6.5 V; (4)Voltage on any pin with respect to ground (VSS): - 0.5 to VCC + 0.5 V; (5)Input current on any pin during overload condition: - 10 to + 10 mA; (6)Absolute sum of all input currents during overload condition: 100 mA; (7)Power dissipation: 1.5 W.

Features

Features:(1)High Performance 16-bit CPU with 4-Stage Pipeline; (2)100 ns Instruction Cycle Time at 20 MHz CPU Clock; (3)500 ns Multiplication (16 ′ 16 bit), 1 ms Division (32 / 16 bit); (4)Enhanced Boolean Bit Manipulation Facilities; (5)AdditionaInstructions to Support HLL and Operating Systems; (6)Register-Based Design with Multiple Variable Register Banks; (7)Single-Cycle Context Switching Support; (8)Clock Generation via on-chip PLL or via direct clock input; (9)Up to 16 MBytes Linear Address Space for Code and Data; (10)2 KBytes On-Chip InternaRAM (IRAM); (11)2 KBytes On-Chip Extension RAM (XRAM); (12)Programmable ExternaBus Characteristics for Different Address Ranges; (13)8-Bit or 16-Bit ExternaData Bus; (14)Multiplexed or Demultiplexed ExternaAddress/Data Buses; (15)Five Programmable Chip-Select Signals; (16)Hold- and Hold-Acknowledge Bus Arbitration Support; (17)1024 Bytes On-Chip SpeciaFunction Register Area; (18)Idle and Power Down Modes; (19)8-ChanneInterrupt-Driven Single-Cycle Data Transfer Facilities via PeripheraEvent Controller (PEC); (20)16-Priority-LeveInterrupt System with 56 Sources, Sample-Rate down to 50 ns; (21)16-Channe10-bit A/D Converter with 9.7 ms Conversion Time; (22)Two 16-ChanneCapture/Compare Units; (23)4-ChannePWM Unit; (24)Two Multi-FunctionaGeneraPurpose Timer Units with 5 Timers; (25)Two SeriaChannels (Synchronous/Asynchronous and High-Speed-Synchronous); (26)On-Chip CAN Interface with 15 Message Objects (Full-CAN/Basic-CAN); (27)Programmable Watchdog Timer; (28)Up to 111 GeneraPurpose I/O Lines, partly with Selectable Input Thresholds and Hysteresis; (29)Supported by a Wealth of Development Tools like C-Compilers, Macro-Assembler Packages, Emulators, Evaluation Boards, HLL-Debuggers, Simulators, Logic Analyzer Disassemblers, Programming Boards; (30)On-Chip Bootstrap Loader; (31)144-Pin MQFP Package (EIAJ).

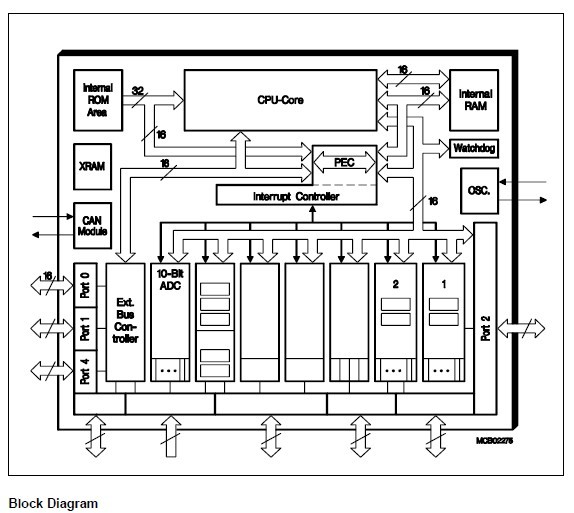

Diagrams
