AT45DB041D-SU

Product Summary

The AT45DB041D-SU is a kind of 2.5V or 2.7V, serial-interface Flash memory. It is suitable for various digital voice-, image-, program code- and data-storage applications. The device supports RapidS serial interface for applications requiring very high speed operations. Its 4,325,376 bits of memory are organized as 2,048 pages of 256 bytes or 264 bytes each. In addition to the main memory, the AT45DB041D also contains two SRAM buffers of 256/264 bytes each. Unlike conventional Flash memories that are accessed randomly with multiple address lines and a parallel interface, the DataFlash uses a RapidS serial interface to sequentially access its data.

Parametrics

Absolute maximum ratings: (1)Temperature under Bias: -55℃ to +125℃ ; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground : -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V.

Features

Features: (1)Single 2.5V or 2.7V to 3.6V Supply; (2)RapidSSerial Interface: 66 MHz Maximum Clock Frequency: SPI Compatible Modes 0 and 3; (3)User Configurable Page Size: 256 Bytes per Page; 264 Bytes per Page; (4)Page Program Operation: Intelligent Programming Operation; 2,048 Pages (256/264 Bytes/Page) Main Memory; (5)Flexible Erase Options: Page Erase (256 Bytes); Block Erase (2 Kbytes); Sector Erase (64 Kbytes); Chip Erase (4 Mbits); (6)Two SRAM Data Buffers (256/264 Bytes): Allows Receiving of Data while Reprogramming the Flash Array; (7)Continuous Read Capability through Entire Array: Ideal for Code Shadowing Applications; (8)Low-power Dissipation: 7 mA Active Read Current Typical; 25 μA Standby Current Typical; 5 μA Deep Power-down Typical; (9)Hardware and Software Data Protection Features: Individual Sector; (10)Sector Lockdown for Secure Code and Data Storage: Individual Sector; (11)Security: 128-byte Security Register: 64-byte User Programmable Space; Unique 64-byte Device Identifier; (12)JEDEC Standard Manufacturer and Device ID Read; (13)100,000 Program/Erase Cycles Per Page Minimum; (14)Data Retention – 20 Years; (15)Industrial Temperature Range; (16)Green (Pb/Halide-free/RoHS Compliant) Packaging Options.

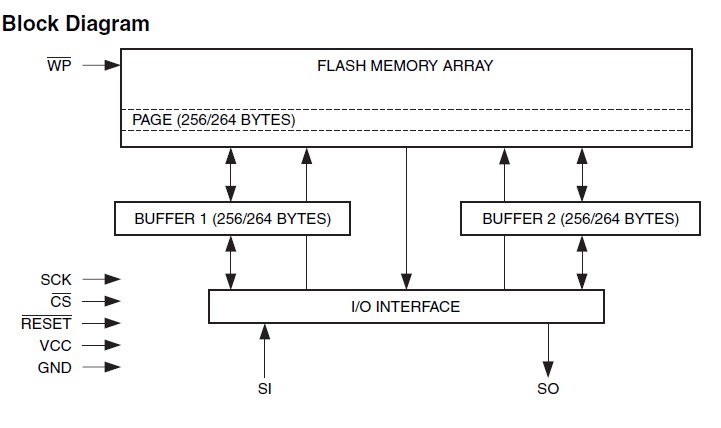

Diagrams
